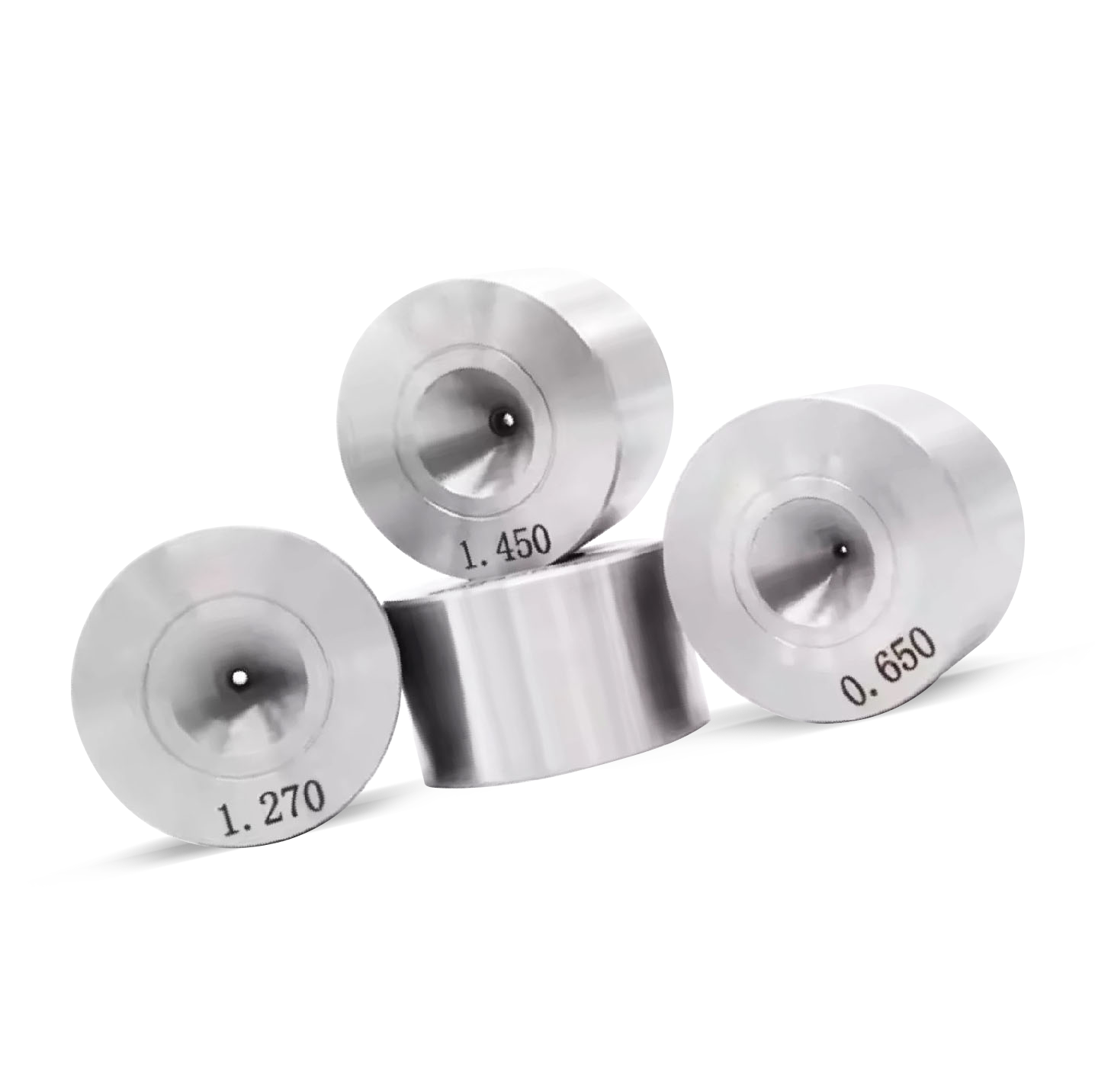

Professional wire drawing dies

These wires offer uniform texture, strong wear resistance, high finish, high precision, and long service life, ensuring surface finish and precision during the long-draw process.

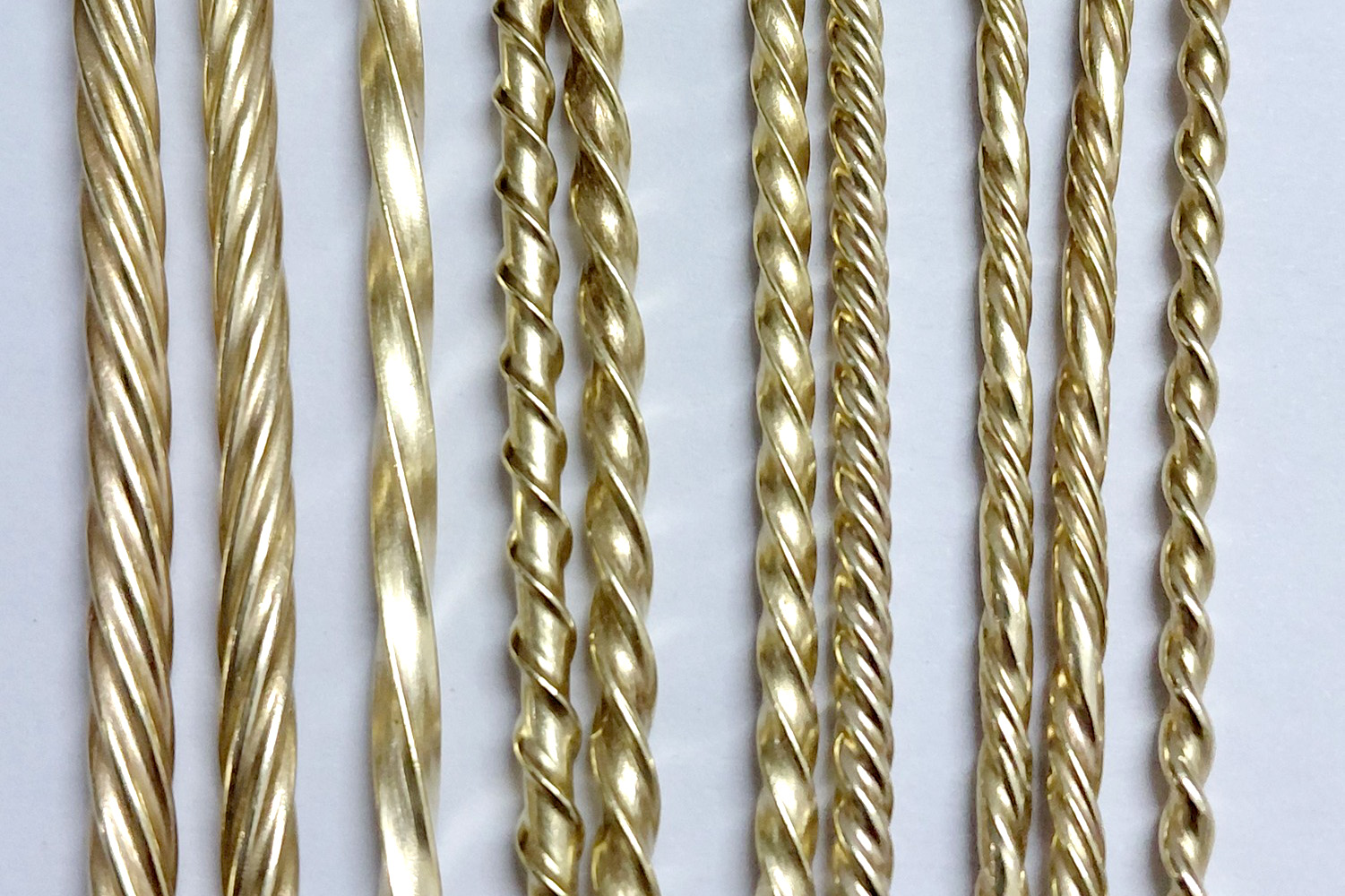

They can produce shapes such as square, flat square, triangle, hexagon, octagon, semicircle, ellipse, fan, Z-shape, and tile.

The minimum aperture for square dies is 0.18 x 0.18 mm, for flat dies is 0.08 x 0.20 mm, for semicircle dies is 0.20 x 0.40 mm, and for triangular dies is 0.25 x 0.25 mm.

Sharp corners can be controlled within 0.01 mm, with a tolerance of approximately 0.001 mm. Custom specifications and shapes are also available upon request.
